Product Description

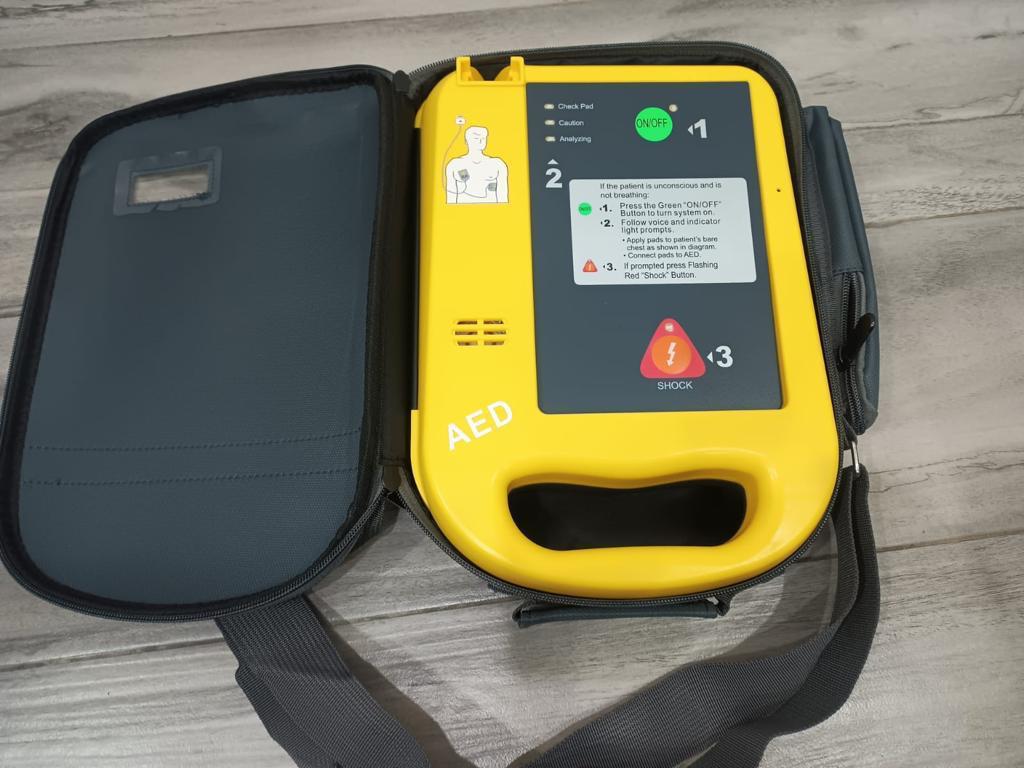

The LTD7000 AED Automated External Defibrillator is a portable, user-friendly defibrillation device designed for family and public spaces. Built for quick and effective response, it helps provide emergency care in cases of sudden cardiac arrest by analyzing the patient’s ECG and guiding the user through defibrillation. With advanced ECG analysis, this AED can assess the heart’s condition, determine if defibrillation is needed, and suggest the required energy level, enhancing the chances of successful defibrillation while minimizing heart injury.
Key Features
- Three-Step Defibrillation Process: Simple steps to carry out emergency defibrillation
- Two-Button Operation: ON/OFF and Shock buttons for easy control
- Voice & Visual Prompts: Provides real-time guidance and safety alerts
- Biphasic Energy Output: Adjusts energy sequence to 150J, 150J, and 200J for optimized defibrillation
- Safety Lock-Out Protection: Prevents accidental shocks
- PC-Based Event Review: Enables post-event analysis and review
- Multilingual Options: Offers multiple language selections for international use
Technical Specifications
- Defibrillation Output: Biphasic Truncated Exponential
- Energy Sequence: 150J, 150J, 200J
- Charge Time: 8 seconds to 150J; 10 seconds to 200J
- Analysis Time: 9 seconds
- Total Cycle Time: Less than 30 seconds for readiness after initial analysis
- Prompt System: 22 audible prompts and LED visual prompts
- Controls: Simple two-button interface (ON/OFF and Shock)
- Energy Accuracy: ±15% for impedance between 25 to 175Ω
- Max Voltage: 1200±50V
- Output Limits: 20Ω to 200Ω for patient safety
Battery Details
- Battery Type: CR123A, Non-rechargeable
- Power: 12V DC, 2.8Ah
- Capacity: Delivers up to 150 Joules per charge
Physical Specifications
- Dimensions: 303 x 216 x 89 mm
- Weight: 2.0 kg
- Operating Temperature: 0°C to 40°C
- Operating Humidity: 30% to 95% (non-condensing)
- Storage Conditions: Temperature: -20°C to 55°C; Humidity: Up to 95% (non-condensing)
Medical Hut provides AED in Pakistan, supporting accessible, reliable emergency care solutions for sudden cardiac arrest.
