Bluetooth Digital Stethoscope – Wireless, High-Precision Auscultation for Modern Healthcare

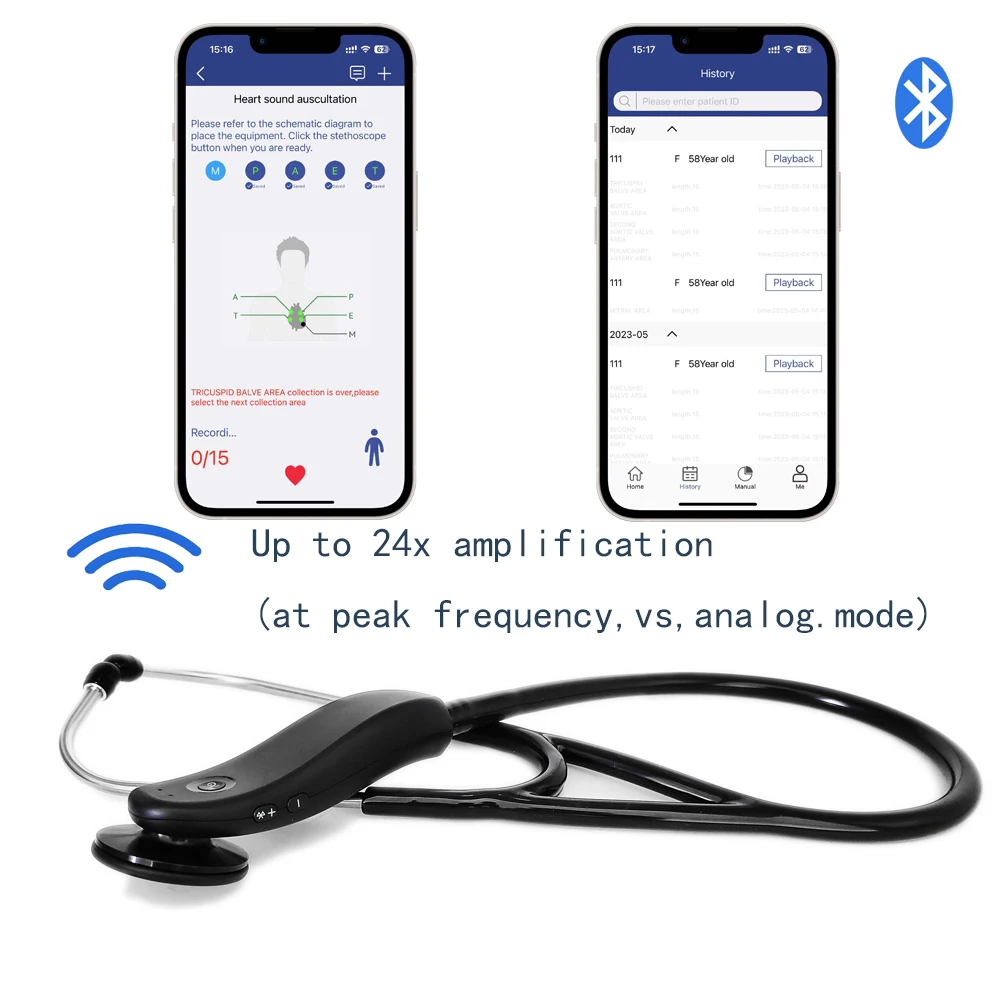

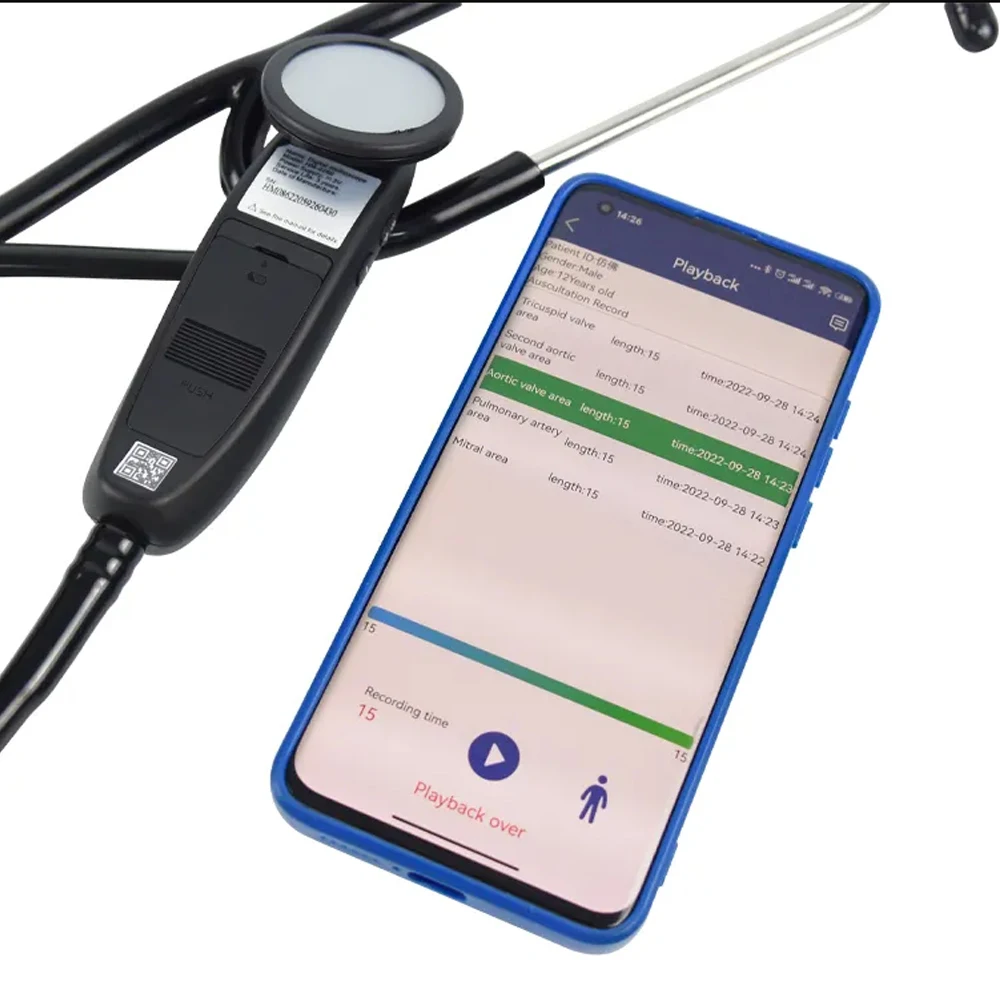

New generation Bluetooth digital core stethoscope, Exclusive software Easily record, save and share detailed recordings of patient visualization sound sound waveforms and sound spectra for multiple, users providing real-time remote viewing.

Bluetooth Digital Stethoscope Features

Product Name: Electronic Stethoscope
Model Number: DST-9260
Chestpiece: Stainless Steel
Binaurals: Stainless Steel
Power: Electric
Ear Tip: PVC
Ring: Ret Ring

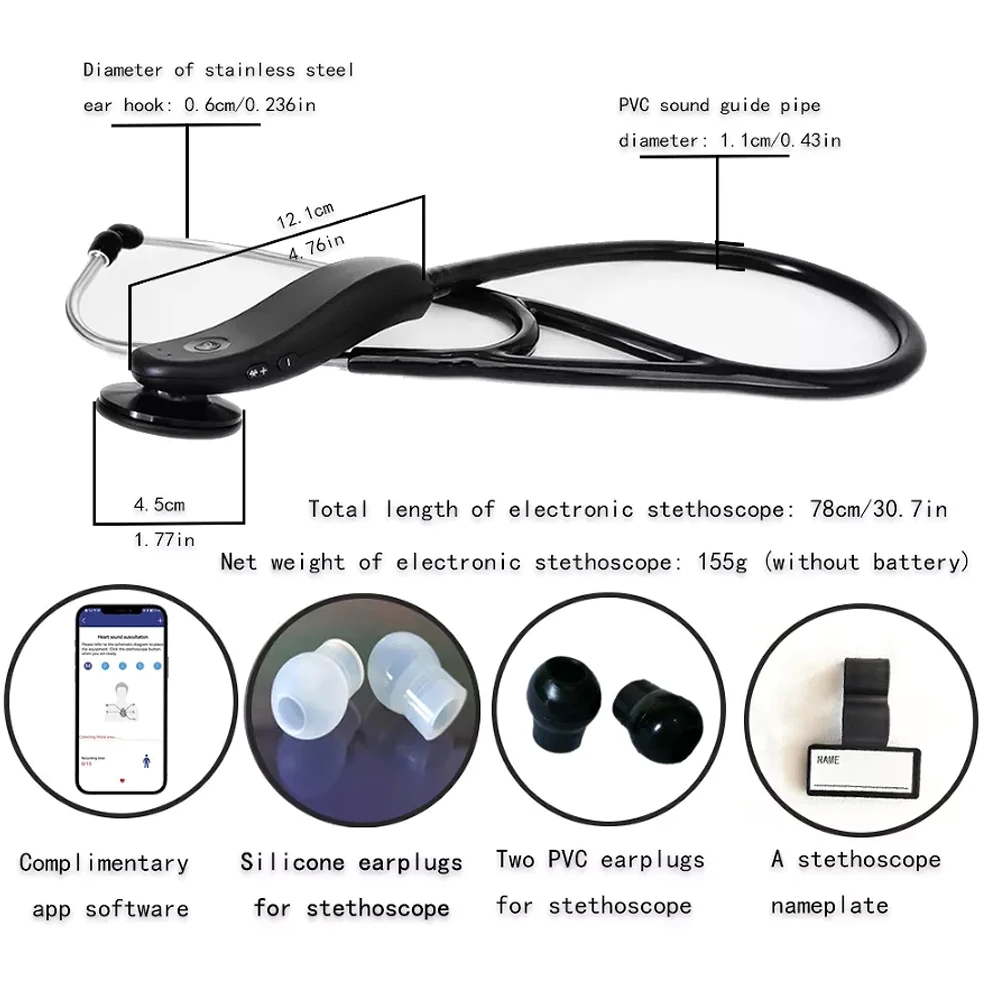

Total Length:    780 mm/30.7〃
Diaphragm Diameter:4.5cm/1.77〃
1) TPE cord, soft and durable.
2) Gold-plated four-section earphone plug, not easy to oxidize, less signal loss.
3) Nickel-plated zinc alloy hearing head, coat cold-proof ring.

4) Precision pickup circuit, amplifying weak signal.
5) No battery, connected to mobile phone, plug and play.
6) Remote auscultation can be realized by dialing the telephone.

Net weight: 155 g (without battery)

Note: APP download is only applicable to Bluetooth 5.0 and above devices.

Bluetooth connection operation

1.1. Connect stethoscope

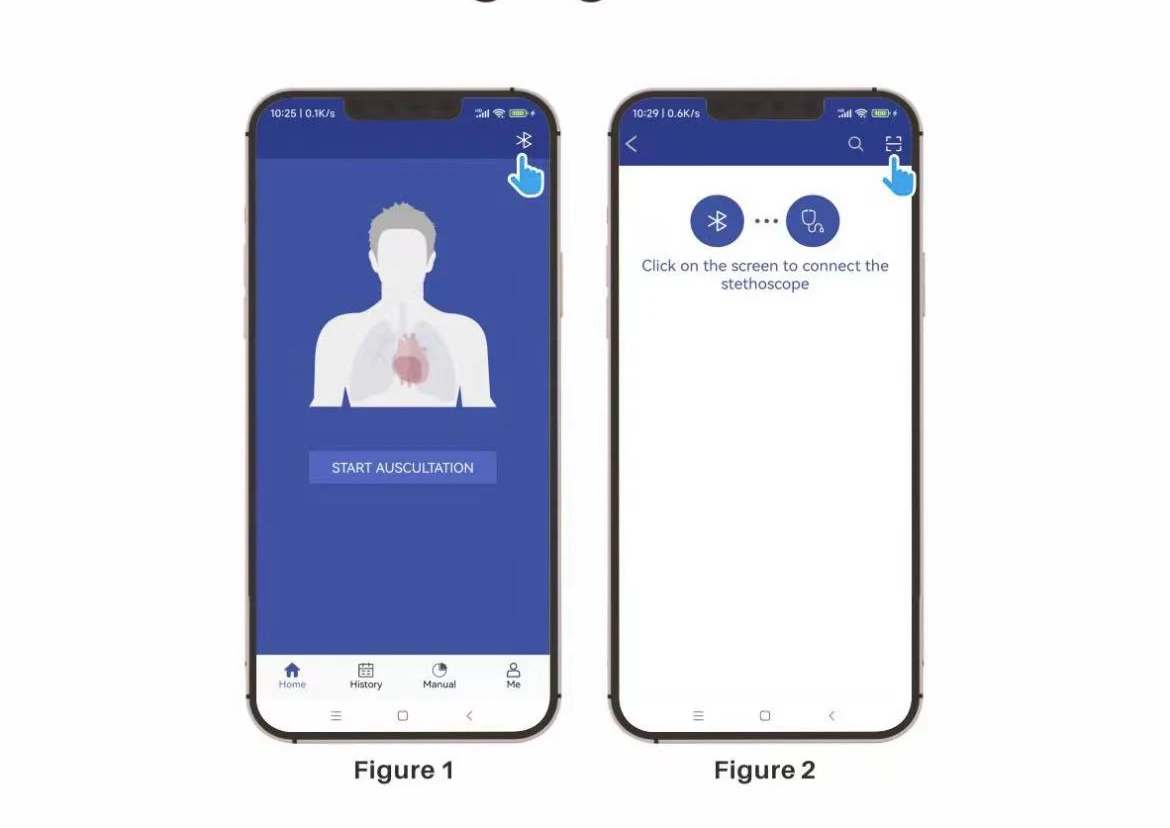

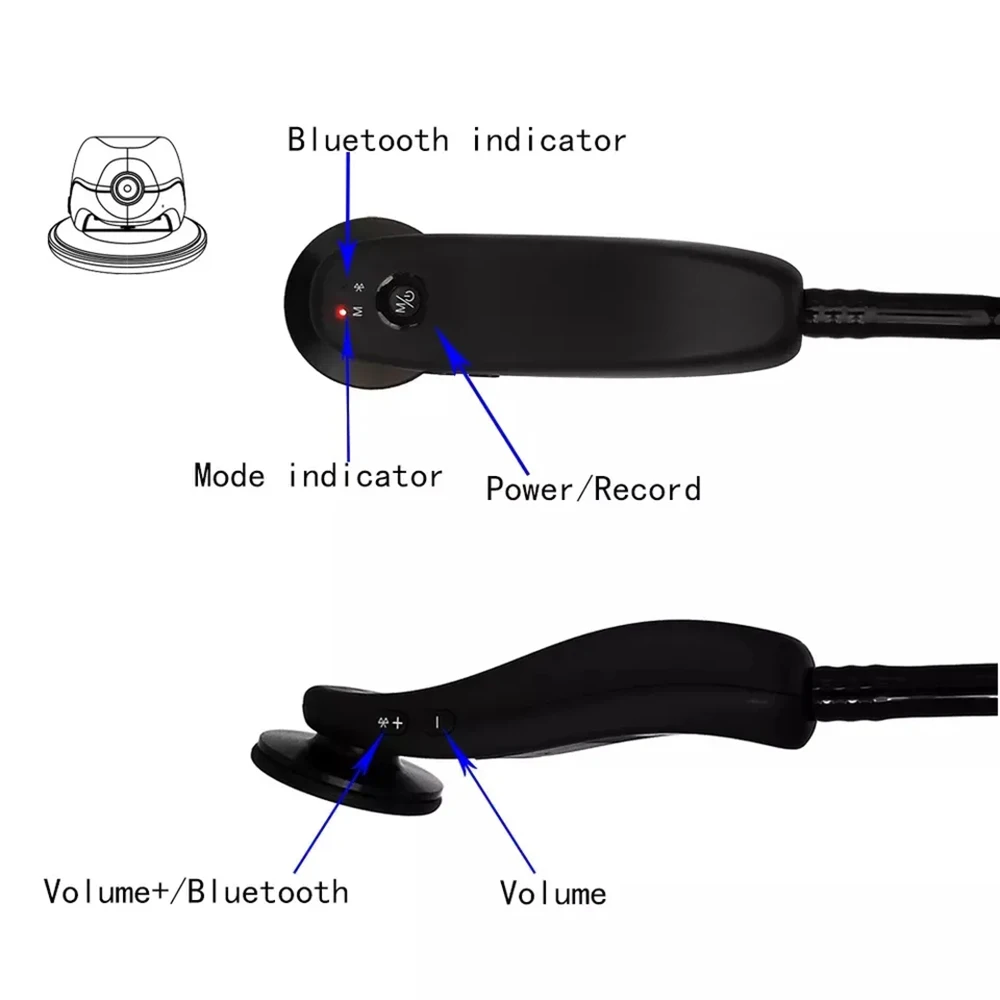

connect the stethoscope: press and hold the volume + button for over seconds, turn on the Bluetooth function of the stethoscope and Open the App. click the Bluetooth icon in the upper right corner as shown in Figure 1), enter the device management page, and click the scan button in the upper right corner. Scanning the QR code of the stethoscope can connect quickly(as shown in Figure 2). If the stethoscope has been connected before, the paired mobile phone will automatically connect the stethoscope, or click the “connect stethoscope device “icon *·to connect.

2. Recording and storage of cardiopulmonary sounds

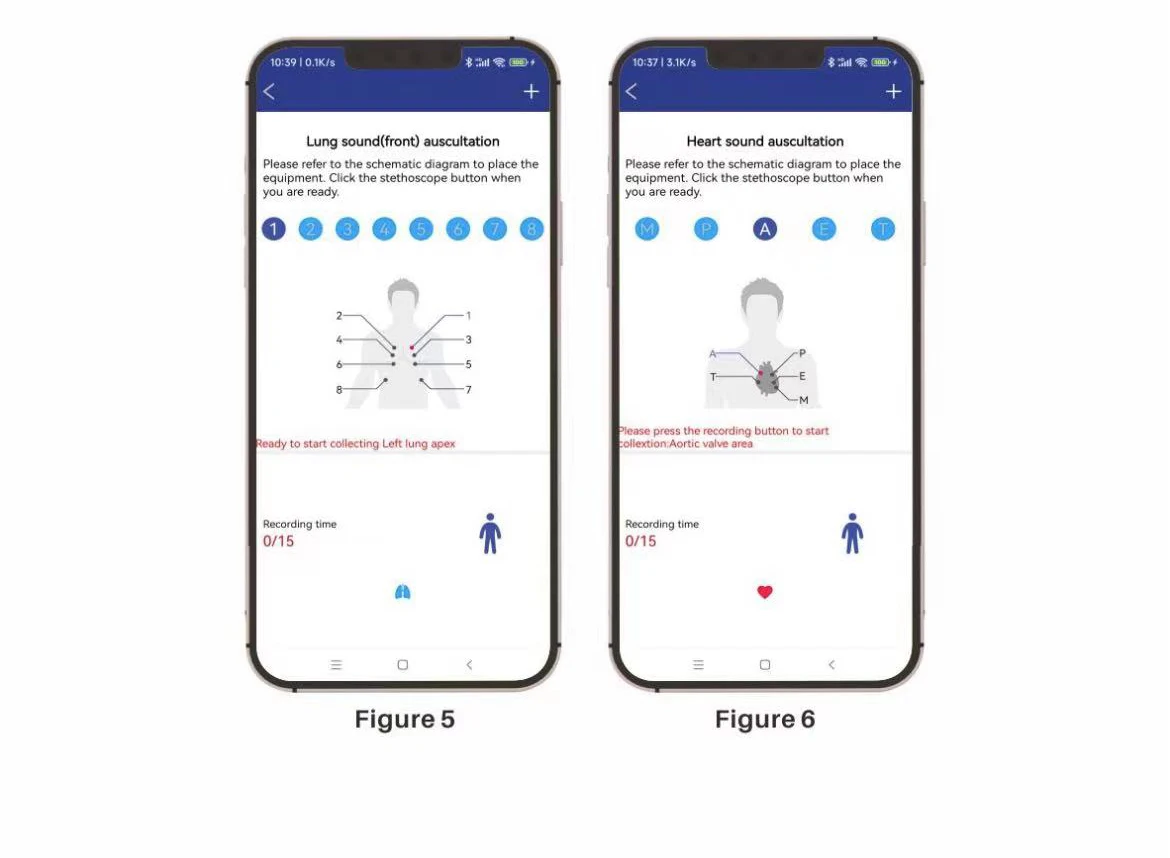

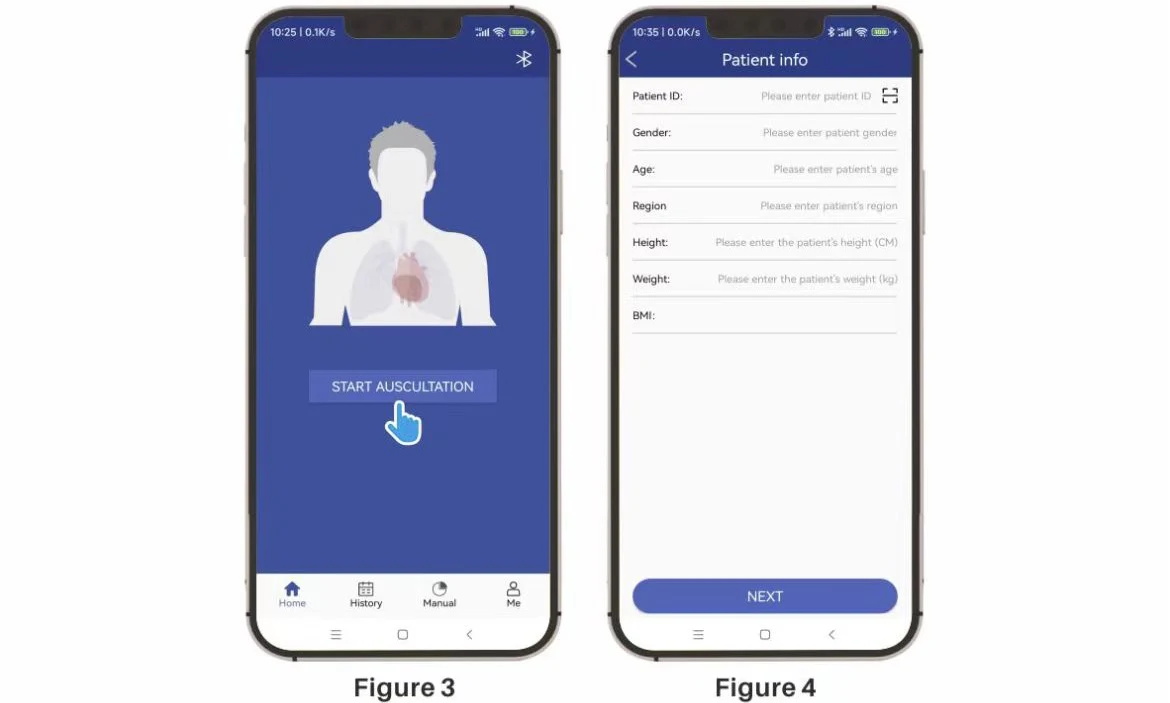

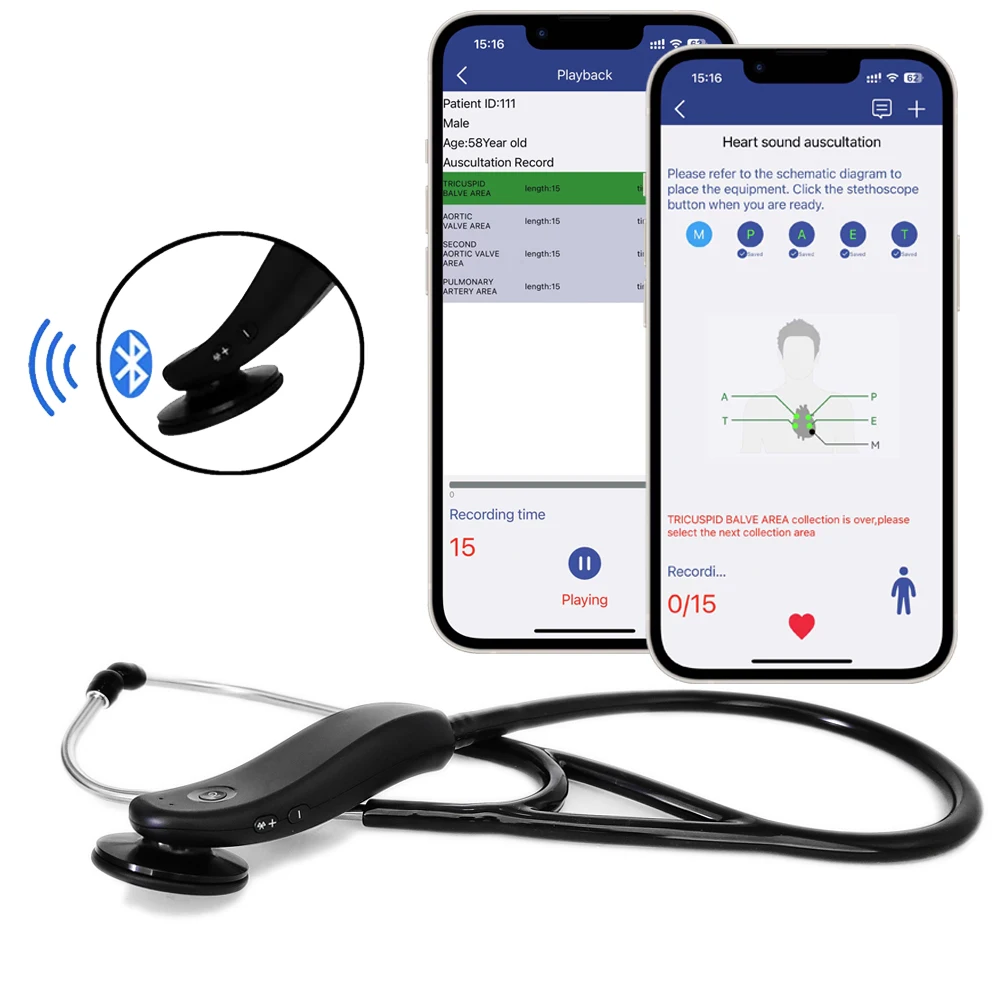

(1) Doctor switches the area manually The default setting of the system is to turn off the switching area. After auscultation in one area, it switches to the next area by default. Or the doctor can click the corresponding auscultation area button to auscultate. The specific operations are as follows: go to the home page of the app (as shown in Figure 3), click “Start Auscultation” to enter the Patient info” interface as shown in Figure 4). fill in the patient info. and click “Next” to enter the “Auscultation Interface” (as shown in Figure 5) Slide left and right to switch between heart sound or lung sound (as shown in Figure 6), then choose the corresponding auscultation area press the power button/recording button of the stethoscope to record.
