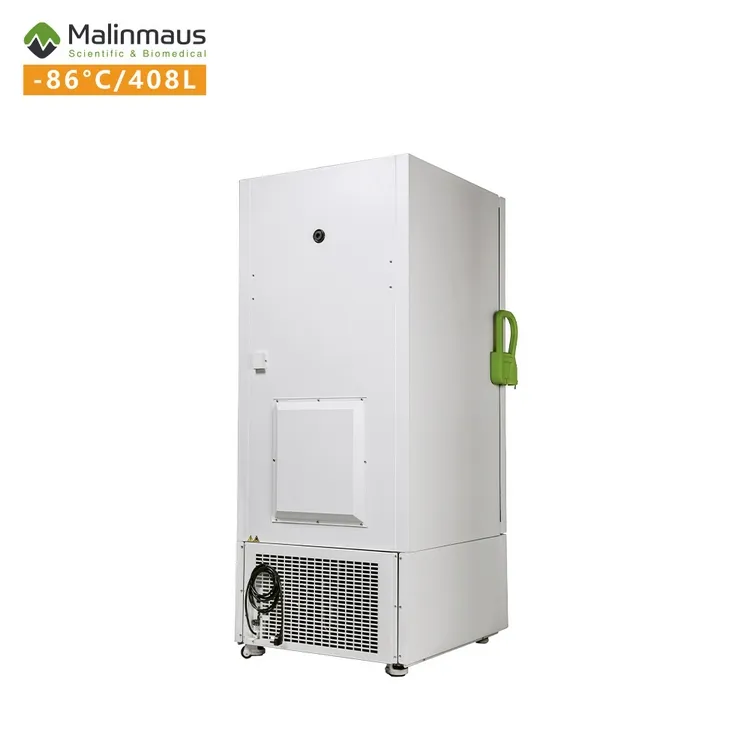

Malinmaus 408L -86°C Ultra Low Temperature Freezer | Dual Cooling System
Low Temperature Freezer is a state-of-the-art solution designed for environments that demand the highest standards in ultra-cold storage. Built for laboratory, research, clinical, and pharmaceutical applications, this freezer ensures optimal protection of sensitive biological samples, vaccines, reagents, and other temperature-critical materials. Its robust design and advanced features make it a go-to option for professionals who require uncompromising reliability and efficiency.Dual Cooling System: This freezer has two independent cooling systems.These two systems work together to get a rapid Pull-down Performance.
Temperature Range: It maintains temperatures between -50°C and -86°C, adjustable in 1°C steps.
Storage Capacity: The model MDF-DU302VX-PA offers 360 liters of storage space, suitable for various laboratory needs.
Advanced Monitoring: A microprocessor-based controller provides security, monitoring, and data logging, all accessible through a touchscreen display.
Dual System Reliable Series(VIP)
-86°C ULT Freezer
- 7′ touch screen controller
- High-performance cascade cooling system
- Maximum sample storage : 28800 pcs (2′ box)
-86°C ultra-low temperature freezers are designed for long term preservation of virus, germs, vaccines, biological tissues and organs, special food, medicines, reagents, etc.
Features of Ultra Low Temperature Freezer
■ Accurate temperature controller, setting temperature range is -40 ~ -86°C, accuracy is 0.1 °C.
■ Suggested ambient temperature: +10~32°C.
■ Insulated inner door to ensure good temperature uniformity.
■ 304 SS inner chamber and round corner for friendly using and easy cleaning.
■ Special designed structure for sample storage.
■ Wide available voltage range: 187V~242V.
Security
■ Safety door lock and controller setting password to prevent unauthorized access.
■ Visual and audible alarm system: High/low temperature, power failure, sensor failure, door ajar, condenser clean, high ambient.
■ Power failure protection: turn on delay of the cooling system after power failure.
Humanized design
■ Casters with stopper for easy moving and fixation.
■ Adjustable shelves for easy storing.
■ Special designed service-free drainage system.
■ Condenser clean alarm to remind the user to clean the freezer regularly.
Optional parts
■ Test hole, Data logger, Chart recorder, LN2 back-up system, cold storage rack & box Of Low Temperature Freezer
|
Model NO.
|
UFV-86-408D
|
|
Main Specifications
|
|
|
Temperature Range
|
-40 ~ -86 ℃
|
|
Ambient Temperature
|
10~32℃
|
|
Capacity (L/Cu. Ft.)
|
408 / 14.41
|
|
Interior Dimensions (W×D×H) mm
|
606×575×1180
|
|
Exterior Dimensions (W×D×H) mm
|
891×992×1945.5
|
|
Weight
|
235.5 kgs
|
|
Noise
|
53 dB
|
|
Storage
|
|
|
Cold Rack (pcs)
|
5×4 / 8, 4×4 / 8
|
|
2′ Cold Box (pcs)
|
288
|
|
0.5~2ml Cryo Vails (pcs)
|
28,800
|
|
Control and Power
|
|
|
Controller
|
Microprocessor
|
|
Display
|
7′ Touch Screen
|
|
Sensor
|
PTC
|
|
Voltage and Frequency
|
187~242V, 50/60Hz
|
|
Power
|
1350 W
|
|
Electric Current
|
11 A
|
|
Power Consumption (kWh/24h)
|
13.8
|
|
Audible and Visual Alarms
|
|
|
High / Low Temp. Alarm
|
Yes
|
|
Power Failure Alarm
|
Yes, 72h
|
|
Sensor Error Alarm
|
Yes
|
|
Controller Error Alarm
|
Yes
|
|
Door Ajar Alarm
|
Yes
|
|
Abnormal Voltage Alarm
|
Yes
|
|
Abnormal Ambient Temp. Alarm
|
Yes
|
|
Battery Error Alarm
|
Yes
|
|
Filter Net Clean Alarm
|
Yes
|
|
Condenser Error Alarm
|
Yes
|
|
Refrigeration
|
|
|
Refrigeration Type
|
Direct Cooling
|
|
Defrost
|
Manual
|
|
Compressor (Brand/pcs)
|
SECOP / 2
|
|
Refrigerant / Weight (kgs)
|
R4001 / 300g
|
|
Cabinet
|
|
|
Door (pcs)
|
Foamed Solid Door / 1
|
|
Inner Door (pcs)
|
304SS Foamed Solid Door / 2
|
|
Fixed / Adjustable Shelf (pcs)
|
0 / 3
|
|
Interior Cabinet Material
|
304 Stainless steel
|
|
Exterior Cabinet Material
|
Coated Steel
|
|
Insulation Material
|
PURF (δ100mm), VIP
|
|
Door Lock
|
Yes
|
|
Test Hole (pcs)
|
Φ25mm / 1
|
|
Fixed / Levelling Castors (pcs)
|
0 / 4
|
|
Accessories
|
|
|
Voltage Stabilizer
|
Optional
|
|
USB Data Download Port
|
Yes
|
|
Remote Alarm Port
|
Yes
|
|
RS232 / RS485 Port
|
Optional
|
|
Temperature Datalogger
|
Optional
|
|
Temperature Printer
|
Optional
|
|
Protective Gloves
|
Optional
|
|
LN2/CO2 Backup System
|
Optional
|
|
LN2 Filling Tank for Backup System
|
Optional
|
