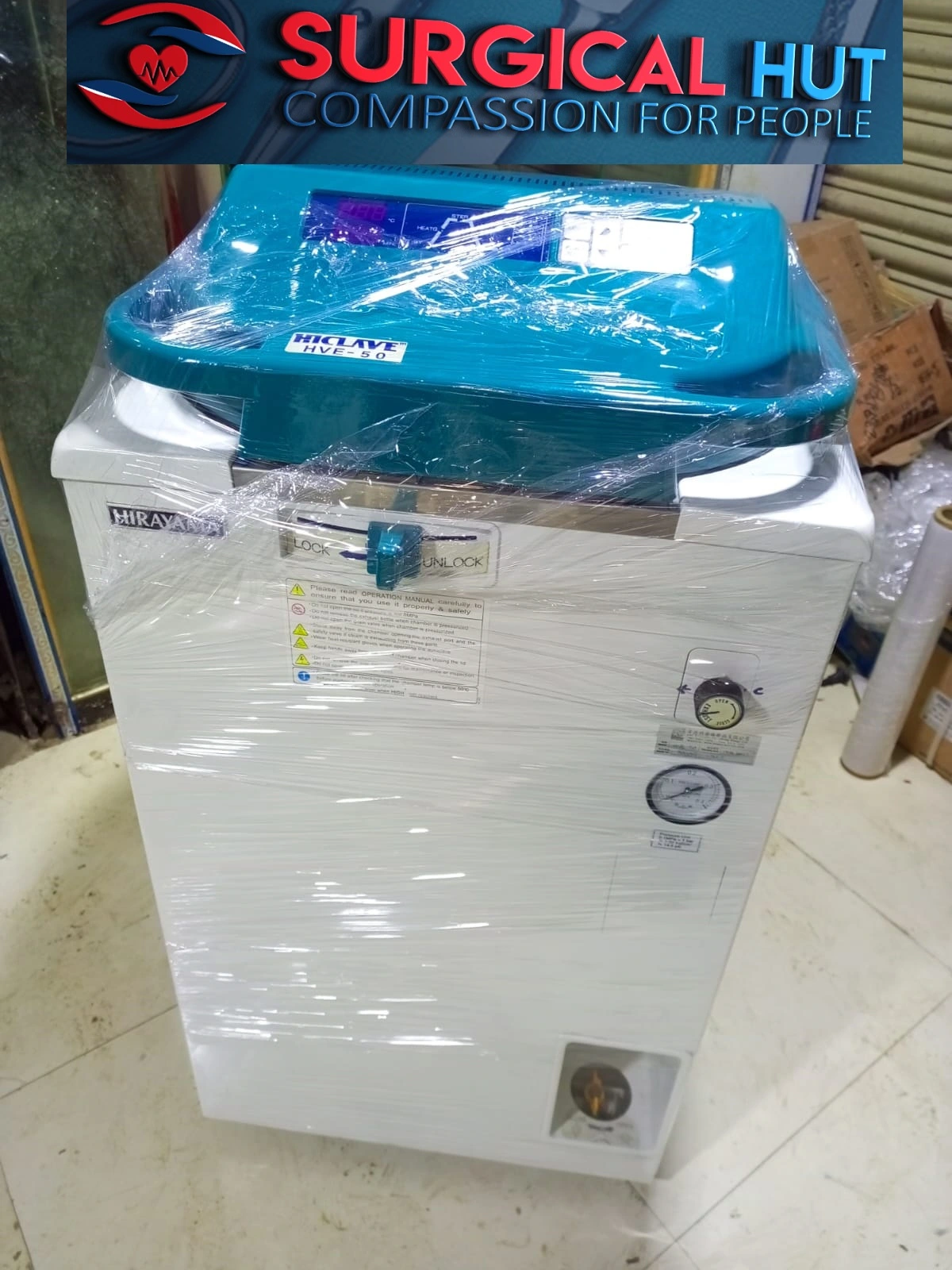

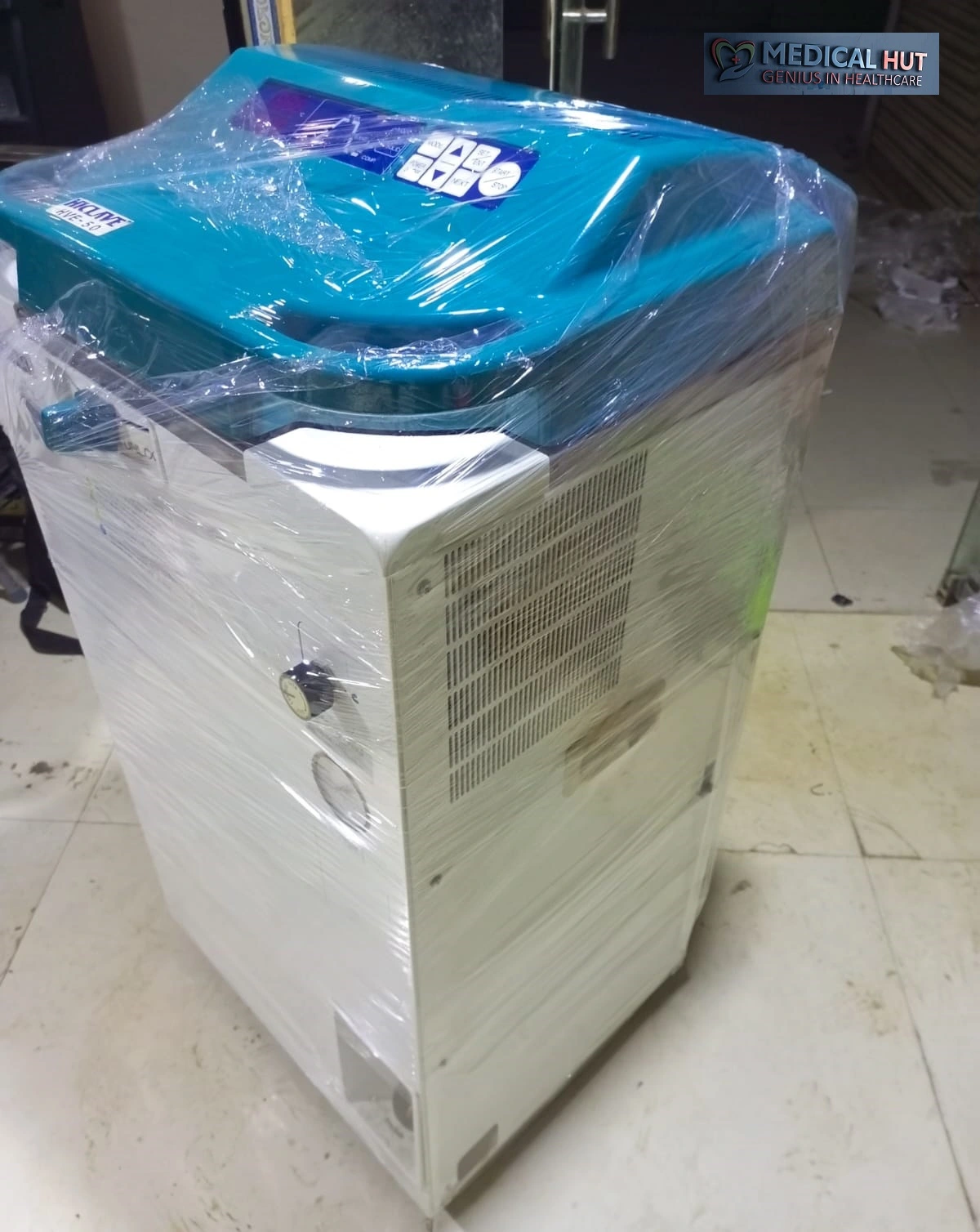

Refurbished HVE-50 Digital Display Pressure Steam Vertical Autoclave
- Electro-mechanical lid lock system
- Dual interlock mechanism
■ Features & Functions
Electro-mechanical lid lock system
The lid can be opened and closed easily and reliably with the one-touch lever.
A pressure seal method is used as a safety measure.
The lid can be opened and closed easily and reliably with the one-touch lever.
A pressure seal method is used as a safety measure.
Dual interlock mechanism
The lid is locked by dually detecting the chamber pressure and chamber temperature during operation.
The lock state is maintained even if an operation is manually interrupted.
The lid is locked by dually detecting the chamber pressure and chamber temperature during operation.
The lock state is maintained even if an operation is manually interrupted.
Pulse exhaust function
Fine exhaust is performed by automatically adjusting the instantaneous exhaust intervals according to the chamber pressure.
Fine exhaust is performed by automatically adjusting the instantaneous exhaust intervals according to the chamber pressure.
Memory function
Set contents can be registered for each mode.
Set contents can be registered for each mode.
Warming function that does not coagulate the agar media.
After sterilization, the agar media is kept warm to prevent it from coagulating.
After sterilization, the agar media is kept warm to prevent it from coagulating.
■ Options for upgrading a system
| Recorder |
|---|
 |
| (Image is a chart type recorder.) ・Chart type recorder: 6-point dotting ・Hybrid recorder: 8-point dotting ※Chart width: 100 mm ※Class 2 T-type thermocouple included |
Required utilities
・Power supply: Refer to the specifications. Household outlets are not recommended.
※Ask us for details.

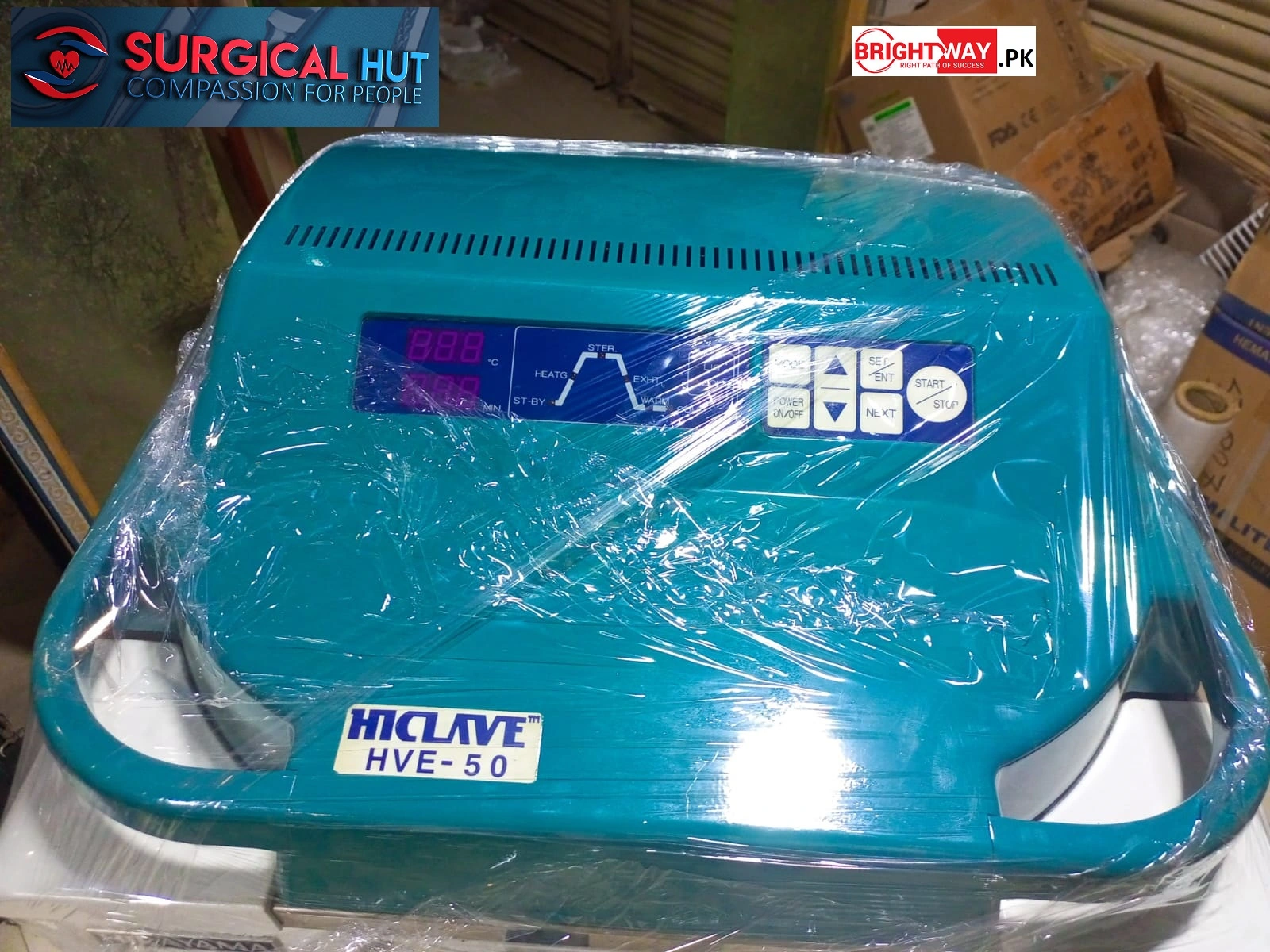

■ Display panel
 |
■ Operation cycle of each mode
| MODE 1 : LIQUID with warming |
 |
Heating | |
Sterilization | |
Variable exhaust | |
Warming |
|---|---|---|---|---|---|---|---|---|
| ●Main applications: Sterilization of agar medium (It is warmed at constant temperature to prevent clotting after sterilization.) | ||||||||
| MODE 2 : LIQUID without warming |
|
Heating | |
Sterilization | |
Variable exhaust | ||
| ●Main applications: Sterilization of liquid, which can withstand high temperature and high pressure steam such as water, culture medium, reagent, reagent solution, liquid medicine, etc. and sterilization of waste using a sterilization bag. | ||||||||
| MODE 3 : SOLID | |
Heating | |
Sterilization | |
Forced exhaust | ||
| ●Main applications: Sterilization of instruments made of glass, ceramic, metal or rubber that can withstand high temperature, high pressure steam and rapid pressure reduction during exhaust. | ||||||||
■ Option
| Stainless steel round wire basket | Sterilization bucket, stainless steel | Stainless steel round wire basket with solid bottom |
Special sterilization bucket for medical waste |
|---|---|---|---|
 |
 |
 |
 |
| φ270 x H220 mm
φ270 x H270 mm |
φ270 x H220 mm
φ270 x H270 mm |
It is recommended to use when using a sterilization bag. A large capacity and bucket-shape bottom can prevent the chamber from being contaminated when a sterilization bag is broken.φ270 x H600 mm※Use a sterilization bag without closing the mouth. |
It is useful for sterilizing injection needles, pipettes, etc. that have sharp tips. Made of aluminum, with handleφ270 x H520 mm |
| Detergent for autoclave | Sterilization bag | Deodorizer |
|---|---|---|
 |
 |
 |
| Detergent to remove culture media, water scale sticked to the inside of a chamber
[Standard amount of use] ※Take out the materials at the time of use. 500 ml |
Special structure reinforced film. Heat resistant temperature is 130℃[Type：A] 200 pcs 500 x 700 mm [Type：B] 200 pcs 620 x 820 mm※Use it without closing the mouth. |
Deodorizer for the “unpleasant odor” generated during sterilization of culture media etc.
It melts smoothly in the sterilization process and exerts a deodorization effect. Standard amount of deodorant according to the autoclave capacity |
| Sterilization tape, Sterilization label, Sterilization bag |
|---|
 |
| ■Sterilization tape: Clear color change makes it easy to identify exposure to sterilization process. ■Sterilization label: Paste directly on the object to be sterilized, you can check the sterilization treatment. After sterilization, the letters “sterilized” appear and it can be easily distinguished from untreated materials. ■Sterilization bag: There are sterilization bags that are made of paper, roll type or one seal back type. Most of them are heat seal type, but tape seal type and aluminum plate seal type can be also available.※Ask us for prices and more details. |
■ Specifications
| Product name | HICLAVE HVE series | ||
|---|---|---|---|
| Model | HVE-50 | ||
| Effective capacity | 50 L | ||
| Chamber size (φ x H mm) | 300 x 710 | ||
| Operation mode | 3 modes (LIQUID with warming, LIQUID without warming, SOLID) | ||
| Temperature setting range |
Sterilization | 105℃ – 135℃ Variable | |
| Warming | 45℃ – 80℃ Variable | ||
| Lid lock | 97℃, fixed | ||
| Time setting range |
Sterilization | 1 min – 250 min, Remaining time is displayed | |
| Warming | 20 h, fixed | ||
| Exhaust setting | 3 levels (Natural cooling, Pulse cooling, Forced cooling) | ||
| Maximum working pressure | 0.255MPa | ||
| Thermometer | Digital display 5℃ – 137℃ | ||
| Pressure gauge | Analog display 0MPa – 0.4MPa | ||
| Safety devices | Pressure safety valve, Over-current and earth leakage breaker, Low water cut off device | ||
| Alarms, error display | Low water heating, Temperature sensor wire disconnection, Over-temperature, Over-cool, Over-pressure, Abnormality in lid opening / closing lever lock |
||
| Outside dimensions (W x D x H mm) | 547 x 532 x 1046 | ||
| Weight (Approximately) | 57 kg | ||
| Pressure vessel category | Small sized pressure vessel | ||
| Chamber material | Stainless steel (SUS304) | ||
| Power supply | AC 110V / 120V / 220V / 230V / 240V, 50Hz / 60Hz, (Specify voltage when ordering.) |
||
| Required power supply facility | 2.0kW | ||
| Power connection |  Ring terminal |
||
| Supplied accessories | Stainless steel wire basket, Bottom plate, Drainage hose, Exhaust hose, Exhaust bottle, Drain bottle, Caster stopper (2) | ||
※Specifications and appearance are subject to change without notice due to continuous product improvement.
