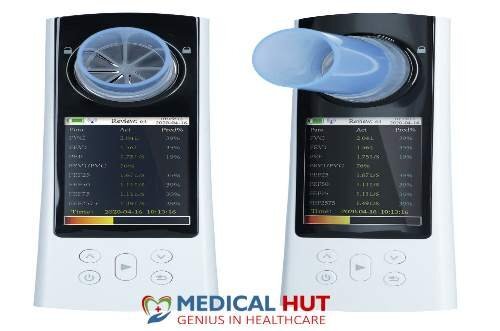

Digital Bluetooth Spirometer
Digital Spirometer SP80B is a hand-held equipment for checking lung conditions, It adopts the infrared mode to measure relative items, such as FVC, FEV1, FEV1/FVC, PEF, etc., and it is applicable for hospitals, clinics, and families for routine test.
Features
- Forced Vital Capacity (FVC), forced expiratory volume in one second (FEV1) to forced vital capacity (FVC) ratio (FEV1/FVC), peak expiratory flow (PEF), forced expiratory flow at 25 % of FVC (FEF25), forced expiratory flow at 50 % of FVC (FEF50), forced expiratory flow at 75 % of FVC (FEF75) and forced expiratory flow from 25 %~ 75 % of FVC (FEF2575) can be measured.
- The personnel information (including height, age, sex, etc.) can be set.

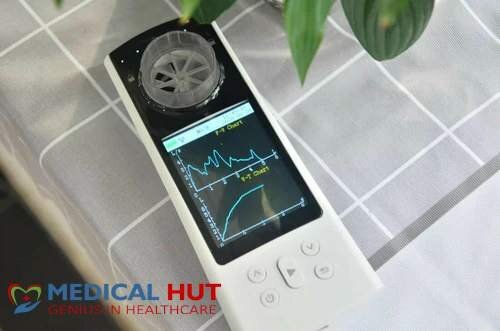

- Flow-volume chart, volume-time chart display.
- The data can be stored, deleted, uploaded, and reviewed.
- Trend chart display.
- Health state indication.
- Calibration function.
- Over–limited prompt function for volume and flow.
- Indicate expiration within 6 seconds by indicators.
- Start measuring by one button.
- The data can be transmitted by Bluetooth or USB cable.
- A real-time clock can be set and displayed.
- Battery power indication.
- Automatic shutdown when there is no operation within two minutes.
- Parameters including FVC, FEV1, FEV1/FVC, and PEF can be measured.
- The testee condition can be shown by the ratio of the measured value and the predicted value.
- User information setup.
- Case review function.
- Mass storage of cases.
- Expiratory time indication function.
- Data transmission by Bluetooth and USB.
- The calibration function ensures test accuracy.
- Power indicator and test indicator light.
Performance ：
- Display mode: 2.8” LCD
- Volume range: 0 ~ 10
- Volume accuracy: ± 3 % or ± 0.05 L (whichever is greater)
- Flow range: 0 L/s ~16 L/s
- Flow accuracy: ± 5 % or ± 0.2 L/s (whichever is greater)
- Working current: 200 mA
- Power supply: rechargeable lithium battery
- Safety class: internally powered equipment, type BF applied part
- Type of protection against electric shock: internally powered equipment
- Degree of protection against electric shock: type BF applied part
- Degree of protection against ingress of liquid: IP22
- Physical characteristic：
Dimension: 138 mm(L)×63 mm(W)×47 mm(H)
Weight: 130g (without batteries)
Package included:
1X SP80B Spirometer
1X Mouthpiece (disposable)
1X USB Cable
1X User Manual
